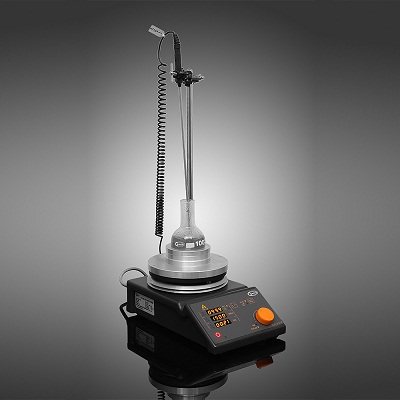

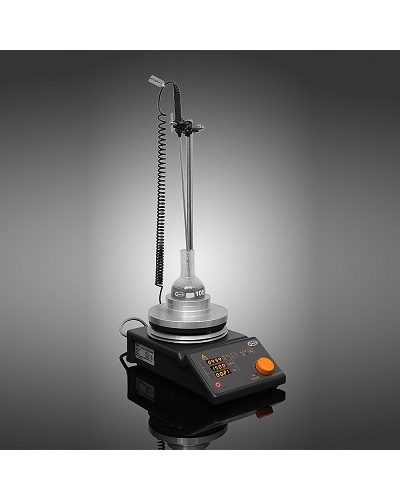

610.DG.01, Ceramic Coated Aluminium Top Plate, Capacity: 2 L, 1500 RPM

Calgon Scientific CO.

Description

Aluminium Moulded Construction
Ceramic coated plate alloy, chemically resistant
Chemically resistant keypad
Even heat distribution at faster rate.
Thermal insulation for cool body operation.
Digital set up temperature controller with independent LED display.
Set safety cut-off for maximum temperature limit for top plate or probe.
Installed with double PT sensors for fail safe operating mechanism.
Hot top indicator for temperature above 50°C even when switched off.
Inclusive PT 100 temperature sensors probe.
Audible alarm at time cycle end for safety and ease of unsupervised operation.
Top plate Ø 145 mm to assist beaker upto 2000 ml & Adapter.
Compatible for use with all major brands top assemblies 1 Cavity, 3 Cavities
or Multiple Cavities.
Digital setup of time with independent LED display.
Selection of plate and probe temperature.
Error code display at failures
Digital setup of RPM with independent LED diplay.
Count-up indication of minutes and hours.
Single multi-turn intelligent knob Operation.
Selection of Celsius and Fahrenheit.
High magnetic strength.

Heating Plate material	Aluminium Alloy with Ceramic Coating
Dimension of heating plate	Ø 145 mm
Stirring Quantity Max.	2 L
Three display windows for	Temperature, RPM and Time
Speed Range	50 - 1500 RPM
Maximum Stirring Bar Length	Up to 80 mm bar (At lower Speed)
Temperature Range	Ambient to 350⁰C approx.
Adjustable Safety Cut-Off	50 – 400⁰C
Control Accuracy of PT100	±1K
Dimensions of Hot Plate Body	273 x 160 x 102 mm
Weight of Body	3.3 Kg
Permissible Ambient Temperature	5 – 40⁰C
Permissible Relative Moisture	80%
RS 232 Interface	Yes (For Programming)
IP Class	32

Brand: GLASSCO
